General

Frame

Progressive single pivot linkage driven suspension design, 170mm travel.
4130 chromoly front triangle, twin down tube design, fully ED coated
6061 Aluminium chainstay, forged yoke, adjustable forged dropouts with 203mm Postmount brake interface
UDH derailleur hanger.
6061 Aluminium seatstays with removable bridge and forged bearing eyelets
Forged rocker arm
Full complement stainless steel sealed bearing, marine grease
Double sealed suspension pivot system for maximum durability
Dual crown fork rating up to 615mm axle to crown
Durable powder coating

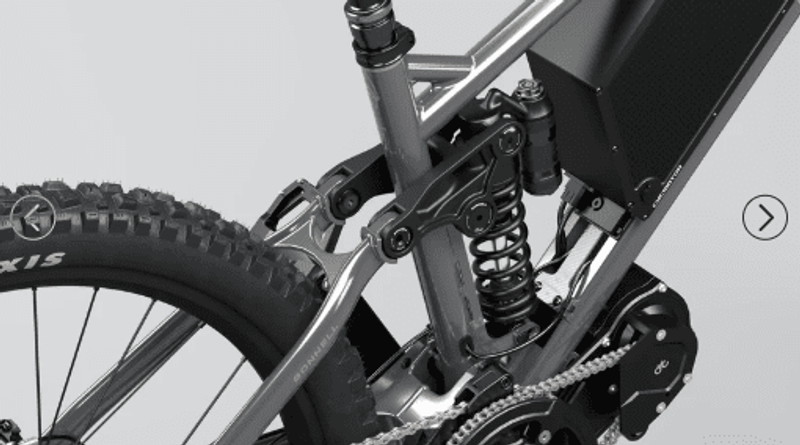

Rear Suspension

Suntour Voro Coil
Trunnion 205*65
5-position low speed compression adjustment (blue knob)
Low speed rebound adjustment (red knob)

Headset

Tapered ZS44 top
ZS56 bottom sealed bearings

Fork

Suntour Rux 38 RC+, tapered 1"1/8-1.5", 29"
200mm travel
50 mm offset
Boost 20*110 mm thru axle
Short integrated fender included.

E-System

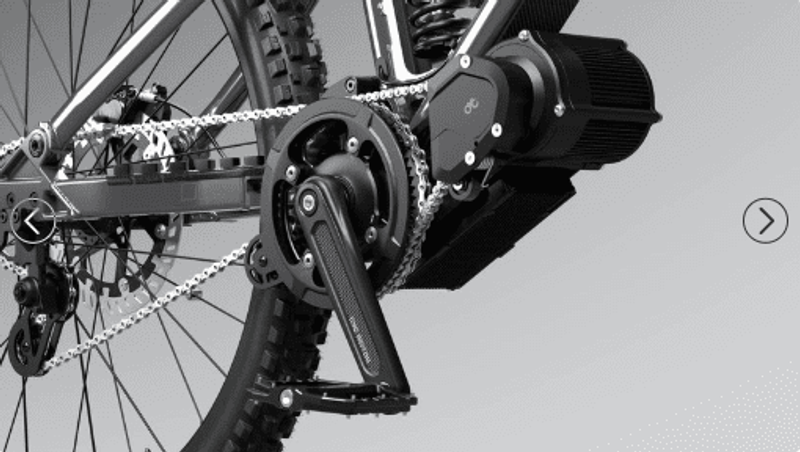

Drive Unit

CYC X1 Pro

Chainring

CYC steel narrow wide 38T

Bashguard

CYC Heavy duty 6061T6 aluminum MTB

Battery

CYC A65 Series 1300 Wh (~17 lbs, 7.6 kg)

Charger

CYC 5A charger

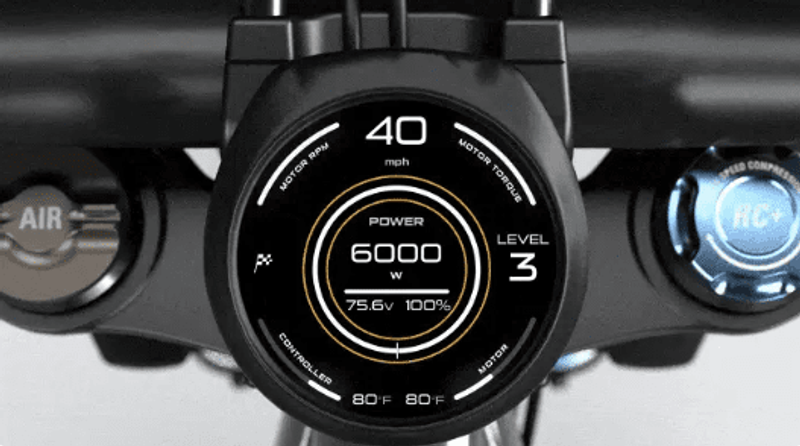

Display

CYC Intuition integrated smart display

Throttle

Lekkie Pacemaker full twist throttle

Drivetrain

Rear Cogs

Single speed 24T Hardened Steel narrow wide sprocket.

Chain Tensioner

Bonnell custom CNC chain tensioner, compatible 22 to 28T sprocket

Chain

KMC e1, EPT (anti rust)

Chainguide

BONNELL upper adjustable chain guide + bottom roller. Compatible from 32T to 38T chainrings

Crank

CYC forged, 165mm

Brakes

Magura MT5, 4 Pistons, MDR-P floating 220F/203R rotors.

Brakes are setup moto style

Brakes Levers

2-finger, aluminum lightweight lever blade, flip flop design allows for regular or moto setup

Adjustment

Chainstay length can be set at 440mm or 452mm

2 shock positions, comfort and sport mode

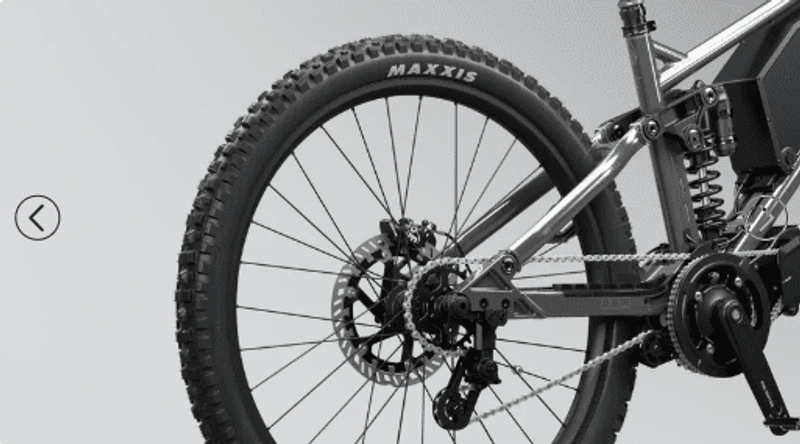

Wheels

Front Hub

Alex rims 20*110 Boost, 36 holes, E-bike hub sandblasted finish

Rear Hub

BONNELL single speed sprag clutch 12*148 Boost. Symmetrical spoke flange design for max wheel strength, 36 holes, sandblasted finish. 6 holes mount for rear sprocket.

Spokes rear

Stainless Steel, 14g

Rims

Alex rims EMC 30, E-bike reinforced, 30mm wide rims, tubeless ready, 36 holes, sandblasted finish

Brake Type

Disc 6 holes

Tire Size

2.5" front and rear

Wheel Size

27.5" rear, 29" front

Tires

Rear: Maxxis Assegai DH casing Maxx grip tubeless ready 2.5

Front : Maxxis Assegai DH casing Maxx grip tubeless ready 2.5

Tubes

Maxxis welter weight 2.5

Components

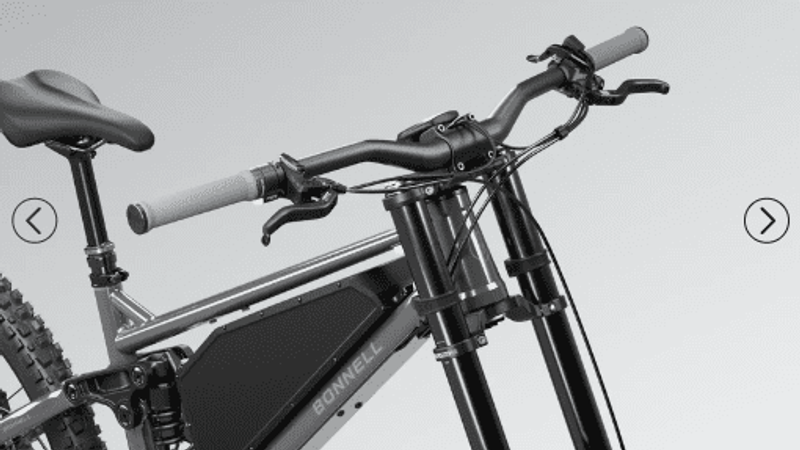

Handlebar

Bonnell 780mm, 31.8mm, 50mm rise 9deg backsweep, black stealth finish

Stem

Kalloy forged direct mount, 44mm long, 31.8mm clamp, black stealth finish. One stem spacer included

Grips

Lekkie single lock on grip/ full twist throttle, soft rubber, black

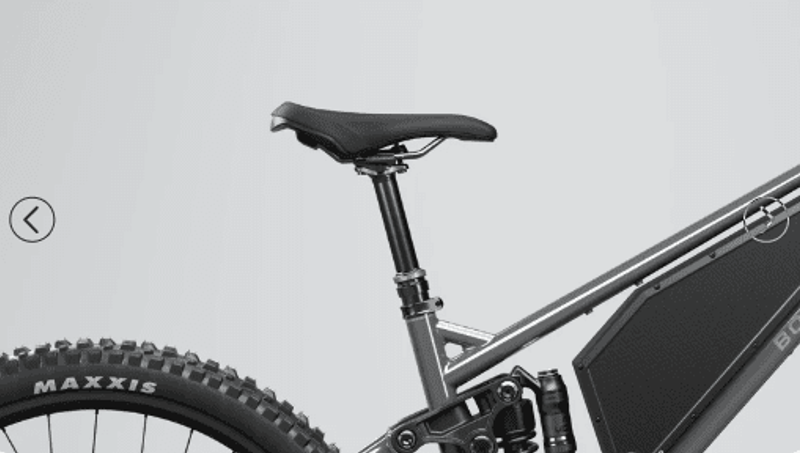

Saddle

Bonnell, by Velo, short nose, reinforced sides, cromoly rails, "I-carry" transport handle.

Seat clamp

Bonnell 34.9 black stealth single bolt

Seatpost

Tranz-X 30.9mm, 2 bolt saddle clamp, 7075 aluminium , hard anodized. Adjustable drop 140-170mm on M and 170-200mm on L/XL.

Seatpost lever

Tranz-X GL 1x lever

Connectivity

Wheel Sensor

CYC bluetooth speed sensor.

Extra

Pedals

Bonnell flat pedals aluminium, 110*98mm platform size, 17mm thick, sealed bearing and bushing contruction.

Tubeless valves

2 valves included in box

Multi tool

Bonnell 13 functions multi tool

Suspension

Shock pump

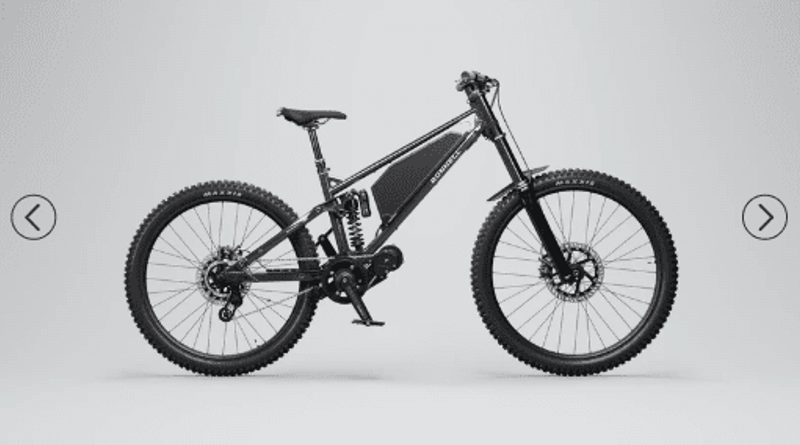

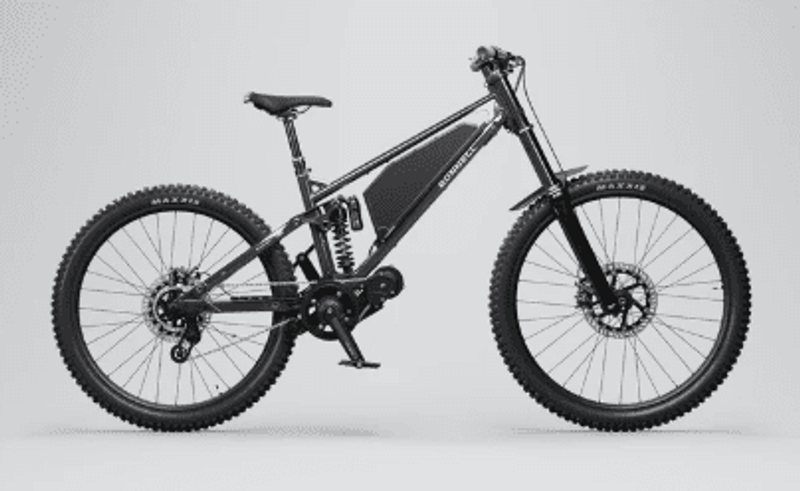

Meet your off-road sidekick: a powerhouse that fuses the nimble precision of a downhill mountain bike with the raw power of a lightweight dirt bike. It's ready for full-on trail domination yet light enough for hassle-free transport. Whether you're a weekend warrior or a seasoned shredder, this ride delivers unparalleled off-road excitement and redefines what's possible on two wheels.
